How Australia can produce green steel

Australia’s natural resources, most notably in the north west, could see us at the forefront of global “green steel” production. Fortescue Metals (FMG), BHP and Rio Tinto (RIO) have the opportunity to have the iron ore they mine processed domestically by harnessing the abundant solar and wind resources in the region to create hydrogen which can be used as a reductant in the steel making process instead of coal.

With climate change and global warming becoming increasingly important across society, using hydrogen to produce green steel (and potentially other uses) could be a very sweet spot for Australia and our big miners. And potentially this could happen within a decade.

The process and resources needed to produce green steel are described in Figure 1. Hydrogen is both an energy source and the reductant in producing steel (just like coal/coke). As well as being an energy source, hydrogen binds with the oxygen in the iron ore to produce water; just like the carbon in coal binds with the oxygen in iron ore to produce carbon dioxide.

Figure 1: Green steel production process

Renewable energy: Australia’s unique position

Carbon free electricity remains elusive and is mainly produced via solar, wind, hydro or nuclear. Given Australia’s position on nuclear and our lack of hydro resources, solar and wind appear to be the only real alternatives. The right combinations of wind and sun are required to generate a consistent flow of electricity to power an electrolyser and ultimately create hydrogen.

Figure 2: Potential compatibility of solar and wind generation

Hourly generation of a 100MW solar PV plant and a 100 MW onshore wind plant in California over the period of one week

Such climatic conditions only occur in limited locations around the world.

Fortuitously, as Figure 3 illustrates, one of these locations is in Western Australia. Work undertaken by the Grattan Institute highlights Australia’s renewable energy resource endowment is both large and rare, giving us a comparative advantage.

Figure 3: Locations with high quality onshore wind and solar

Notes: Land higher than 3,000 metres is excluded because renewable energy resources are harder to use when they are in mountainous terrain. High-quality resources are defined to be areas with average wind power-density of at least 450 W/m2 and average daily solar photovoltaic potential of at least 4.5kWh/kWp. North Africa includes the Horn of Africa

Green hydrogen

Those who have studied chemistry may remember that hydrogen is the first element in the periodic table. In normal conditions hydrogen is a colourless, odourless, tasteless and highly flammable gas. Most of the earth’s hydrogen is locked in water (H2O) and in hydrocarbons such as methane (CH4).

There are two main methods of producing hydrogen. Green hydrogen is produced via the electrolysis of water while blue hydrogen is extracted from fossil fuels. Our focus is on the more climate friendly green hydrogen.

Green hydrogen is produced via an electrolyser. In an electrolyser an electrical current is passed through a water cell breaking up the water (H2O) into hydrogen (H2) and oxygen (O2). If the electricity production emits no carbon dioxide then the hydrogen is deemed to be carbon free or green.

Hydrogen gas is already produced in large quantities around the world; in 2018 approximately 117mt was produced, but most of it was consumed for its chemical properties rather than as a source of energy.

The problem with hydrogen has been its low density, high reactivity, low boiling point and high combustibility; which means hydrogen is difficult, costly and dangerous to transport. This limits its industrial application as a source of energy.

Enter ammonia. Ammonia (NH3) is a molecule with one nitrogen atom and three hydrogen atoms. Liquified ammonia contains more hydrogen – and therefore more energy per unit of volume than hydrogen gas. Furthermore, ammonia can be transported more safely and cheaply making it a perfect way to transport hydrogen. (Investing in companies that produce ammonia is another way to gain exposure to the de-carbonisation thematic.)

Green steel: The next big thing?

The global steel industry produces around two billion tonnes of steel each year with a value of around US$2.0 trillion depending on the market price. Coal is the principal source of energy. Steel production accounts for over three billion tonnes of carbon dioxide or around 8% of global emissions.

Given the magnitude of the problem and hence the corresponding reward for solving it, there have been many projects launched around the world looking into producing steel via alternative methods. Many have focused on using hydrogen, rather than coke/coal. If successful, this would have a significant impact on the volume of carbon dioxide produced and would render the steel “green”.

Green steel has been produced in a number of locations around the world but in small, subscale volumes. Reducing capital and operating costs remain the hurdle. However, as we have seen in many other industries, Wrights Law usually applies, as industries grow in scale bringing down unit costs.

Wright’s Law: While studying airplane manufacturing, Wright determined that for every doubling of airplane production, the labour requirement was reduced by 10-15%. In 1936, he detailed his full findings in the paper “Factors affecting the costs of airplanes.” Now known as “Wright’s Law”, or experience curve effects, the paper described that “we learn by doing” and that the cost of each unit produced decreases as a function of the cumulative number of units produced.

Given the intense focus on decarbonisation it is not impossible that the cost of hydrogen and the cost of green steel falls to a level that renders production economic. Furthermore, the prospect of consumers paying a premium for a car or washing machine made from green steel would bring forward the time to profitability.

The Lucky Country and Lucky Companies

Australia, Western Australia, the Pilbara, BHP, Rio Tinto (RIO) and Fortescue Metals (FMG) are at a unique intersection where these emerging climate change related global trends overlap.

Western Australia, has the large land area where climatic conditions would allow the large and continuous supply of green hydrogen energy due to its fortunate solar and wind resources; the Pilbara has some of the world’s largest iron ore reserves and BHP, RIO and FMG all have the financial and emerging intellectual capital to exploit the massive opportunity to create green steel. And they have signalled, and allocated capital towards reducing carbon emissions which may include the production of green hydrogen and green steel.

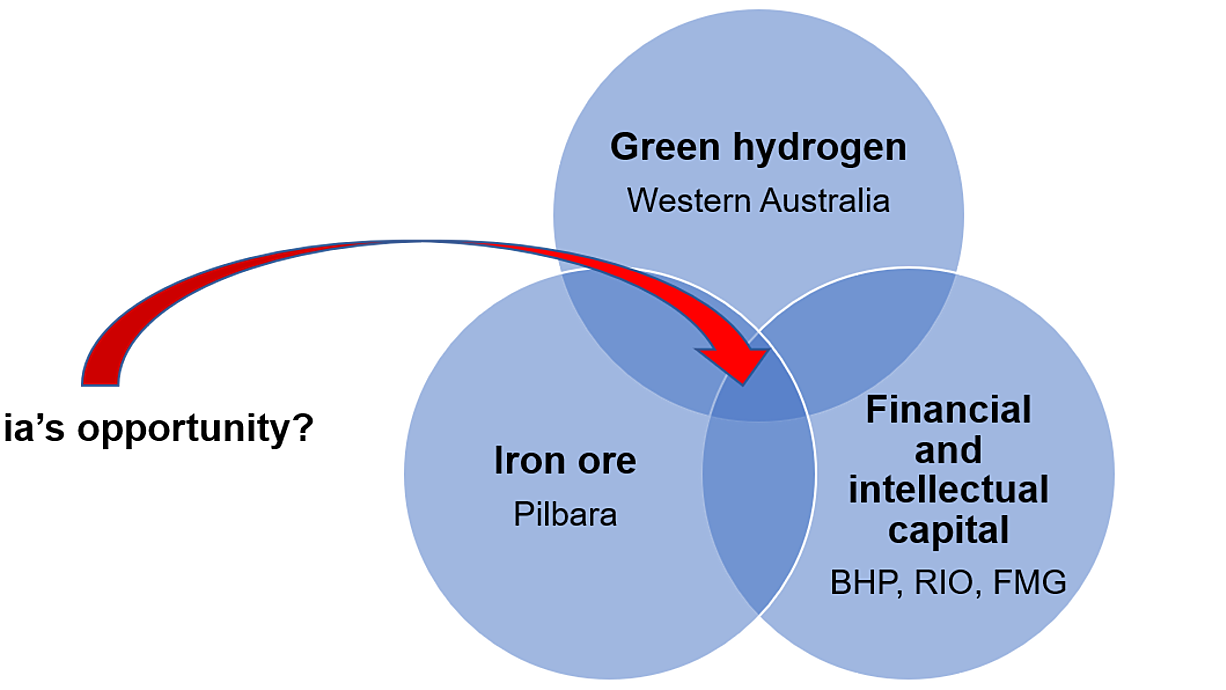

Figure 4: Australia’s sweet spot
